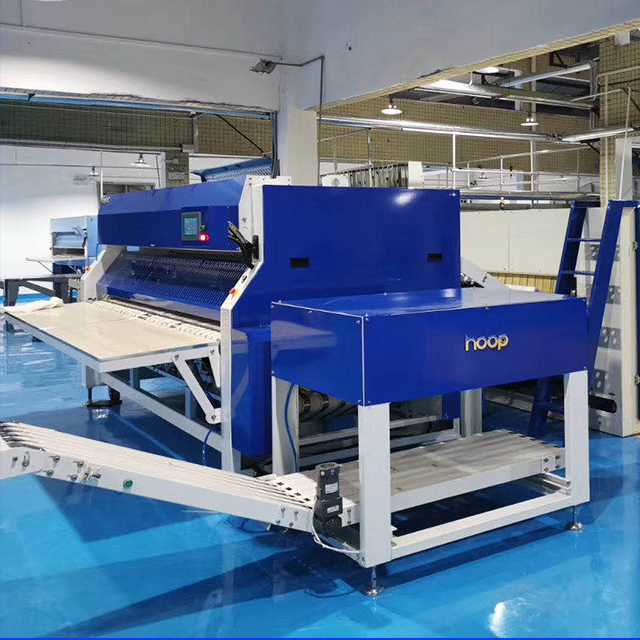

ZD High Speed Folding Machine
ZD Series Folding Machine
◎ Two lateral, three cross, total five foldings, the biggest folding scope 3300mm.
◎ Fold 3000 x Two sets of independent motor inverter control with folding of 50m/min speed in adjustable steplessly within the function, and various types of screed machine matching.
◎ Microprocessor control with LCD display and built in diagnostic system.
◎ Perfect the diagnosis function and safety protection system for daily use, and maintenance of machine of domestic initiative, anti-static function more increased machine working reliability and stability.
◎ One production counter per lane.
◎ All folds made by air blast and pinch rolls.
| Description | Model Unit | ZD3300-V | ZD3300-G(High speed) | ||
| Max Folding (L*W) | MM | 3300*3000 | 3300*3000 | ||
| Max Speed | M/min | 10-50 | 10-60 | ||
| Layers | Ply | 5 | 5 | ||
| Air Pressure | Mpa | 0.7 | 0.7 | ||
| Rated Input Power | Kw | 2.35 | 2.35 | ||
| Voltage | V | 220/240/380/415/440 | |||
| Dimension L*W*H | MM | 4760*3095*1825 | 4760*3095*1825 | ||
| Net Weight | Kg | 2450 | 2450 | ||
