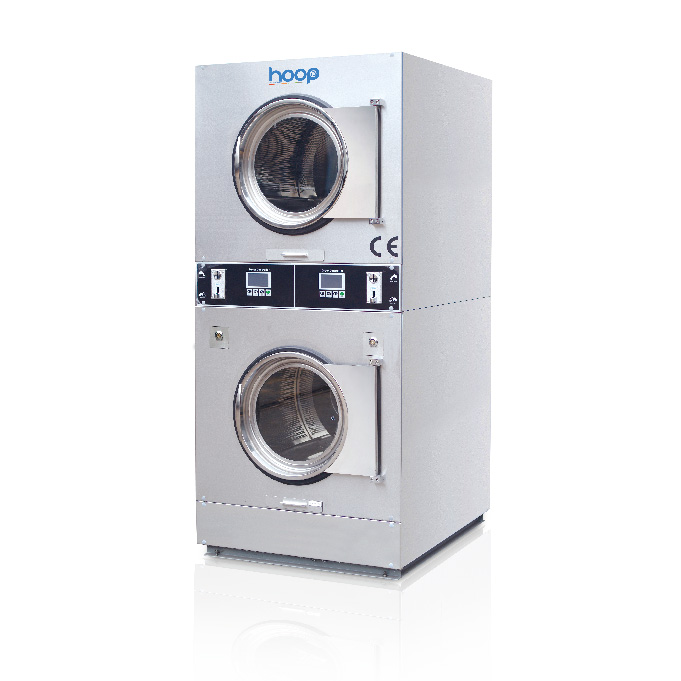

SDD Series Stacked Dryer
◎ Double-layer structure, saves space.
◎ Panel and drum adopt high quality stainless steel, acid and alkali resistance, anti-corrosion, good appearance, long life.
◎ Simple door system, easily for users.
◎ Can read different coins and tokens at the same time, card read system also available, widely used for all over the world.
◎ It can work smoothly even high spin speed more than 700r/min becauseof unique suspension system.
| Model | Unit | SWD-10 | SWD-12 | SWD-15 | SWD-18 |
| Washer Capacity | kg | 10 | 12 | 15 | 18 |
| Dryer Capacity | kg | 10 | 12 | 15 | 18 |
| Dryer Drum Dimension | mm | ɸ670*380 | ɸ700*500 | ɸ700*630 | ɸ750*650 |
| Dryer Drum Volume | L | 134 | 192 | 242 | 287 |
| Dryer Motor Power | kw | 0.14 | 0.14 | 0.14 | 0.14 |
| Dryer Fan Motor Power | kw | 0.75 | 0.75 | 0.75 | 0.75 |
| Heating Power For Dry | kw | 9.8 | 15 | 15 | 15 |
| Gas Consumption | Kg/h | 1 | 1.2 | 1.2 | 1.5 |
| Dimension Lxwxh | mm | 940*1200*1900 | 940*1200*2070 | 940*1220*2100 | 1050*1370*2000 |
| Net Weight | kg | 450 | 500 | 550 | 600 |
