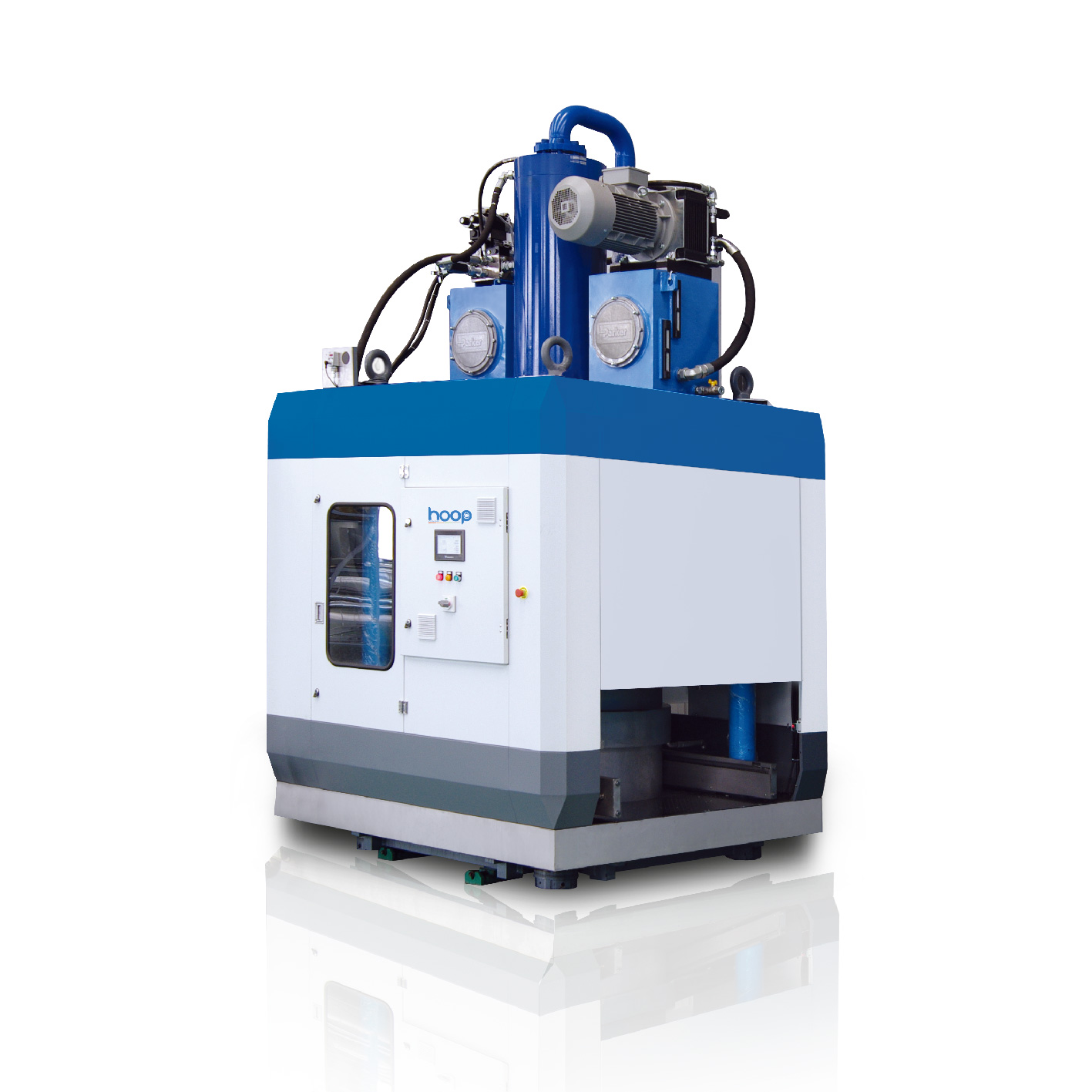

SQ Series Squeezer

Short Description:


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: ShangHai
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Sq Series Squeezer

    ◎ Stable and powerful pressure, the maximum pressure of the hydraulic circuit is 275 bar.
    ◎  And bed sheets, water contact parts are made of stainless steel, stainless steel panel.
    ◎ Import thick rubber bags, sidewall 45 mm thick, bottom thick 30 mm.
    ◎  Thick stainless steel basket (30mm), super on the lower floor and column, never deformation.
    ◎ Through a hydraulic power of the pusher automatic discharge (the direction of the material can be made according to customer choice).
    ◎ Full import of Parker hydraulic control system and cylinder components.
    ◎ Can be set reciprocating preload procedures to reduce the damage of grass.
    ◎ With three different pressure models to choose from.

    Note:The above specifications are change without notice.

    Item Unit Index Remarks
    Drying Capacity kg 75 SQ-75
    Maximum Pressure Bar bar 36bar The pressure can be set at the infinity
    Linen Diameter mm 970
    Indenter Type   Water-filed rubber indenter 30mm Side wall thickness 30mm
    Dry Way   Basket-type multi-level confining pressure
    Height Of The Basket mm 490
    Transmission Mode   Standing in two directions The hydraulic motor drives the push plate
    Control Method   Touch screen+programmable controller Can set up 100 programs
    Power kw 15 Squeeze water recovery pump
    Pump Power kw 0.75
    Dimension mm 2000*2000*3200 (LxWxH)
    Weight kg 13500
